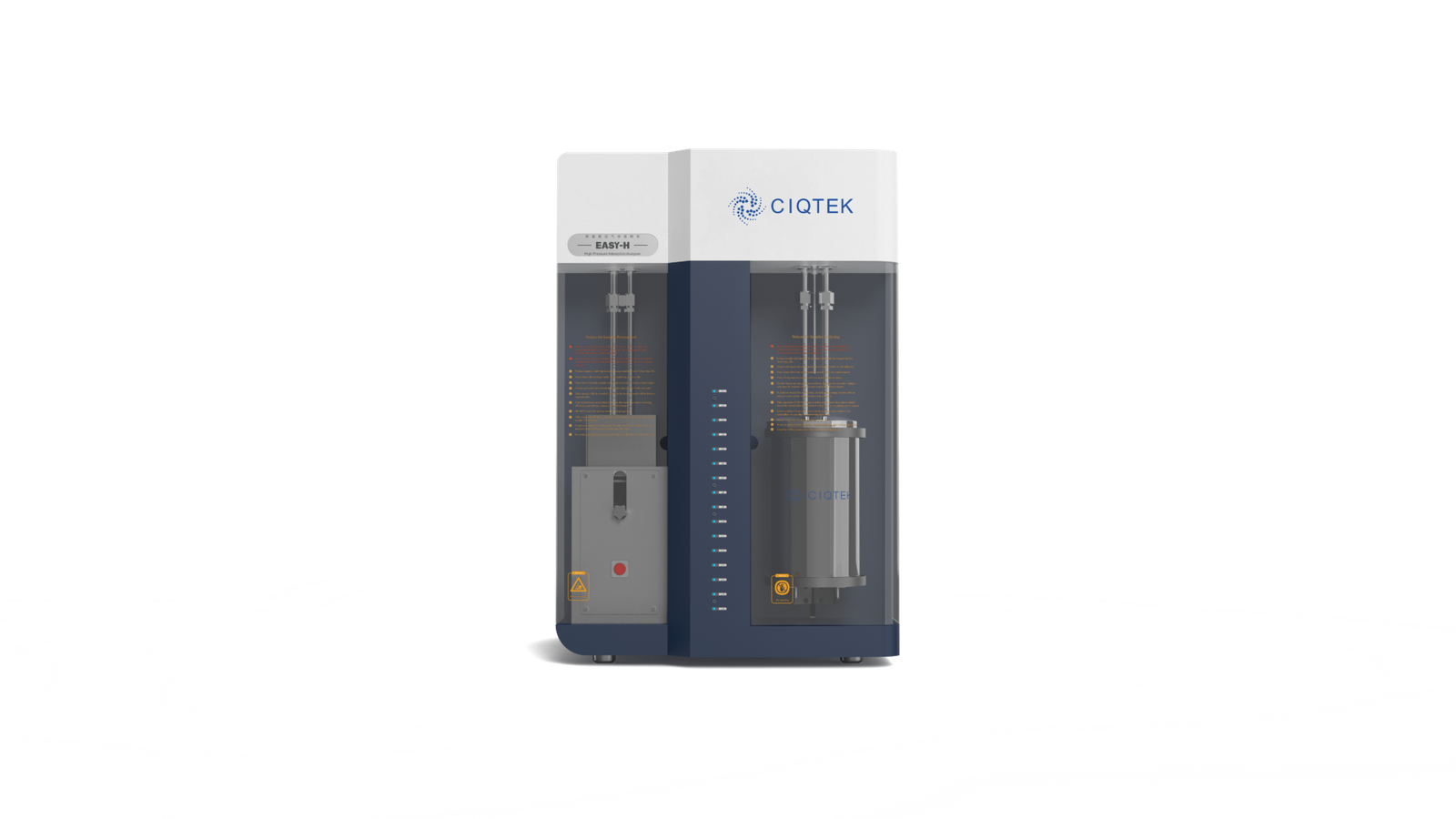

EASY-H 1210 & 1420 High Temperature Hydrogen Storage Gas Adsorption Analyzer
EASY-H 1210 and EASY-H 1420 high-pressure and high-temperature gas adsorption analyzer are high-performance adsorption and desorption isotherms testing instruments independently developed by CIQTEK, which adopts the static volumetric method.
The range of isothermal temperatures and pressures can be tested to meet the needs of many research fields. The product has the high-temperature and high-pressure adsorption testing function and a unique PCT isotherm and hydrogen absorption and desorption pressure platform, which can be widely used in rare earth alloy material hydrogen storage industry, shale gas, and coalbed methane adsorption research, petroleum exploration and gas separation and other fields; it is also important for understanding the adsorption performance of some adsorption materials such as catalysts, molecular sieves, and activated carbon, the research of fuel cells, carbon nanotubes, and graphene.
Embedded test computer, safe and stable. 10-inch capacitive touch screen, tablet control experience.
The micro-welded stainless steel sample tube and the VCR metal surface are sealed and connected to maintain a reliable sealing performance in high temperature and high pressure; high-precision test data can still be obtained for small sample loading.
The protective safety door can prevent safety accidents caused by accidental contact with high and low temperature insulation device and eliminate the impact of environmental factors on the test.
Heating packages up to 550°C (1022°F) for ease of use; the higher temperature heating device can be equipped with a ceramic fiber integrated hard rigid heating furnace.
The ball screw integrated lifting system, controlled by the stepper motor, overcomes the shortcomings of common screw types easy to jam, and so on.
For EASY-H 1210: Independent 2 sample processing ports can be performed simultaneously with sample testing to improve testing efficiency.
Advantages
Digital pressure measurement and data acquisition system
- The pressure and temperature sensor with digital output has twice the accuracy of similar products with analog output and stronger anti-interference ability.
- Industrial standard RS485 or RS232 communication mode. Sensors are added on demand on the communication bus, with high scalability.
- High stability digital quantity pressure sensor, extremely low-pressure temperature drift can still maintain the low-pressure fluctuation under high pressure, which is conducive to improving the test accuracy.
- The sensor can output the digital quantities of temperature and pressure at the same time, which facilitates the secondary correction of the pressure-temperature drift software.
